Column Type Pay-Off and Take-Up Stand for Wire & Cable Industry

1. Applications

Our Pay-Off and Take-Up Systems are designed for efficient and reliable wire and cable handling in medium- to heavy-duty production applications. Available in portal, A-frame, and column-type designs, they provide stable reel support, precise cable alignment, and smooth pay-off and take-up operations. The systems can accommodate different reel sizes and offer manual or semi-automatic reel changing options. With advanced drive systems and accurate traverse control, they ensure uniform cable distribution, high-quality winding, easy operation, and reduced risk of cable damage during unwinding. Suitable for standalone operation or integration into various wire and cable production lines.

2. Technical parameters
Applicable reel specifications: PN1000---PN1600
Applicable reel weight: ≤5T
Type: No foundation(The roller moves on the ground to open and close)

Max linear velocity: 110m/min
Take-up diameter: ∮40mm
Lifting mode: The lifting of the reel and the parting and closing of the thimble are driven by the AC motor and operated by the cantilever.
Clamping pintle mode: Side shift, both sides of the top shaft operation can be single action or linkage
Traversing mode: Screw line,Layout pitch can be adjusted,and take-up reel speed linkage.

3. Photos

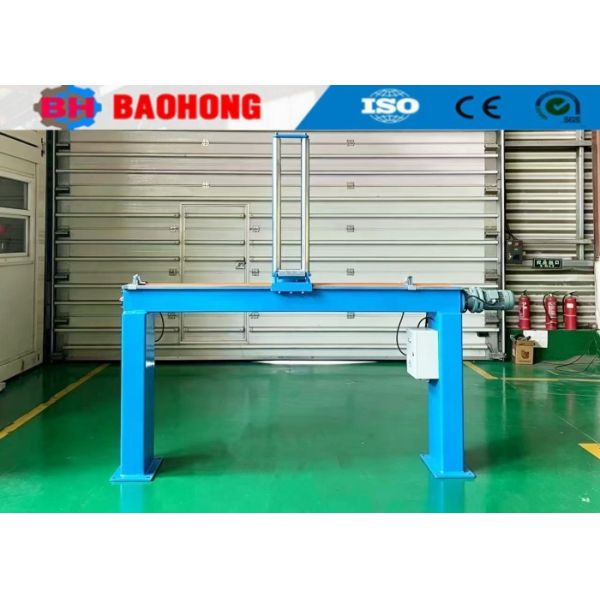

column type pay-off stand for wire
